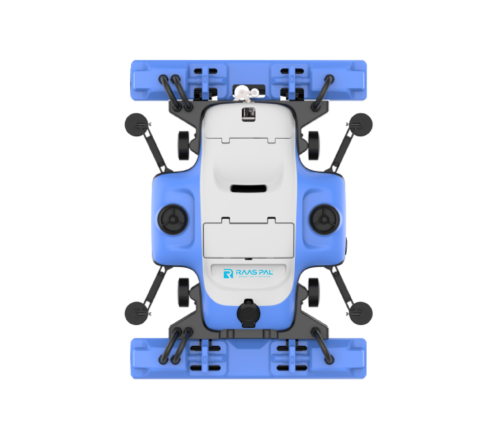

SpiderBot K-3
SpiderBot K3: An intelligent glass cleaning robot capable of operating at heights up to 600 meters, featuring a secure and robust adhesion system for exceptional performance and precision.
Specification
| Dimensions (L×W×H) | 1377 × 1000 × 288 mm |
| Weight (kg) | 67 kg |
| Load Capacity | 1500 kg (with safety rope) |
| Operating Height | 600 meters |
| Cleaning Gradient | 0~90°C |
| Climbing Speed | 0.2 meters/second |
| Cleaning Efficiency | 720 m²/hour |
| Cleaning Surface Width | 1000 mm |
| Temperature Tolerance | -10°C to 45°C |
| Power Supply | Built-in battery (48V 51AH) |
| Continuous Working Time | 3 hours (+-30%) |
| Waterproof Rating | IP64 |
| Applicable Surfaces | Glass / Smooth surfaces |
FUNCTION
Wall Adhesion System with 8 Contact Points
- The robot securely adheres to walls, withstanding wind forces and impacts from external environmental conditions.
- This adhesion system enhances safety during high-altitude operations, ensuring the robot remains securely attached to the wall throughout its tasks.
Automatic Drive System
- The system compensates for air pressure changes in emergencies, such as sudden weather changes, maintaining the robot’s balance by adjusting air pressure.
High-Precision 4-Directional Sensors
- The sensors detect obstacles both vertically and horizontally, reducing collisions and enhancing operational safety.
- These sensors allow the robot to accurately identify obstacles or obstructions in its path.
Intelligent Image Processing System
- The robot can switch between different operation modes based on the situation, such as wide-area cleaning or confined-space cleaning, optimizing its functionality for specific tasks.
Automatic Locking System
- In the event of a power outage, the automatic locking system ensures the robot remains adhered to the wall and continues working without reliance on electrical power.
Structure
